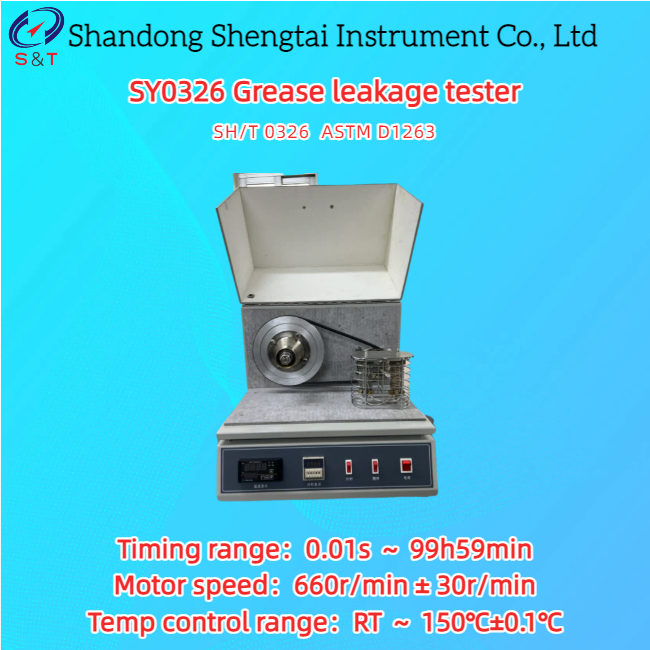

SY0326 Grease leakage tester
The SY0326 lubricating grease leakage tester is designed and manufactured strictly in accordance with the SH/T0326 standard.
This instrument installs the sample into the modified front wheel hub and shaft assembly, allowing the hub and shaft to run for 360 ± 5 minutes under specified conditions. Measure the leakage of lubricating grease or oil, and pay attention to the surface condition of the bearing at the end of the sample. This instrument is suitable for measuring the leakage of automotive wheel bearing lubricating grease and can be used to distinguish products with significantly different leakage characteristics.
Performance characteristics
● The instrument adopts integrated design, meaningful appearance, easy to operate;
● Unique heat pipe rod insert casting body box-type heating system makes the heating speed is fast and the temperature control accuracy is high;
● Imported motor rotation, low noise, stable speed, good mechanical properties and small wear;
● The hub and shaft assembly structure is compact, small end clearance, bearings are imported parts, reliability and wear resistance is guaranteed;
● Microcomputer temperature controller, digital display, precision ±0.5℃ PT100 sensor;
● Digital display timer, record the test time;
● There is a thermometer hole on the shaft assembly;
● Standard motor 660r/min±30r/min;
● Two groups of heating power combined 660W;
● The body is surrounded by thermal insulation cotton.
Technical parameters
| Standard |
SH/T 0326 ASTM D1263 |
| Heating mode |
Metal bath heating |
| Temp control range |
RT ～ 150℃±0.1℃ |
| Temp control mode |
Imported PID digital temp controller |
| Timing mode |
Digital four digit timer |
| Timing range |
0.01s ～ 99h59min |
| Motor speed |
660r/min ± 30r/min |
| Whole power |
1KW |
| Working power supply |
AC220V 50HZ |
| Instrument size |
430m*280*380mm |
| Instrument weight |
28kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N |
Name |
Quantity |
Unit |
Remarks |
| 1 |
Host |
1 |
Set |
|
| 2 |
Power cord |
1 |
Piece |
|
| 3 |
Instructions |
1 |
Copy |
|
| 4 |
Packing list |
1 |
Copy |
|
| 5 |
Certificate warranty card |
1 |
Copy |
|
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
